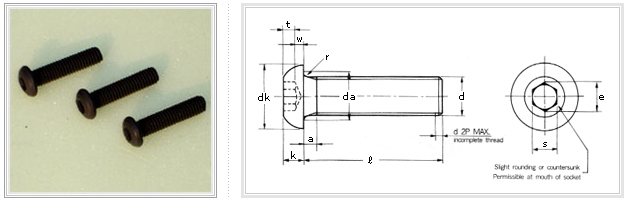

▣ Hexagon Socket Button Head Screws Unit : mm
Thread diameter d
M3
M4
M5
M6
M8
÷ M10
÷ M12
÷ M16
Thread Pitch
0.5
0.7
0.8
1
1.25
1.5
1.75
2
a 1)
max.
1
1.4
1.6
2
2.5
3
3.5
4
da
max.
3.6
4.7
5.7
6.8
9.2
11.2
13.7
17.7
dk
max.
5.7
7.6
9.5
10.5
14
17.5
21
28
min.
5.4
7.24
9.14
10.07
13.57
17.07
20.48
27.48
e
min.
2.3
2.87
3.44
4.58
5.72
6.86
9.15
11.43
k
max.
1.65
2.2
2.75
3.3
4.4
5.5
6.6
8.8
min.
1.4
1.95
2.5
3
4.1
5.2
6.24
8.44
r
min.
0.1
0.2
0.2
0.25
0.4
0.4
0.6
0.6
s
nom.
2
2.5
3
4
5
6
8
10
max.
2.045
2.56
3.08
4.095
5.095
6.095
8.115
10.115
min.
2.02
2.52
3.02
4.02
5.02
6.02
8.025
10.025
t
min.
1.04
1.3
1.56
2.08
2.6
3.12
4.16
5.20
w
min.
0.2
0.3
0.38
0
1.05
1.45
1.63
2.25
